Blade information

Different blades have different profiles, so you are best to check with your blade manufacturer for specifics to your blades.

IMG_5883 (002)

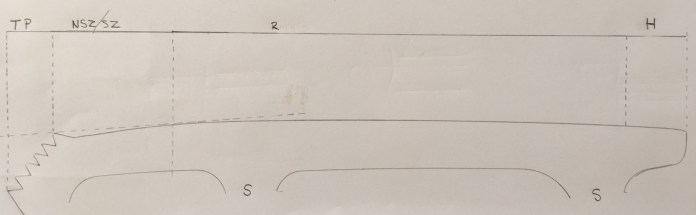

Side profile of skate blade- TP= Toe Pick, NSZ/SZ= Non skating zone/spin zone, R= Rocker, H= heel,           S= stanchion.
Labeled Diagram 1

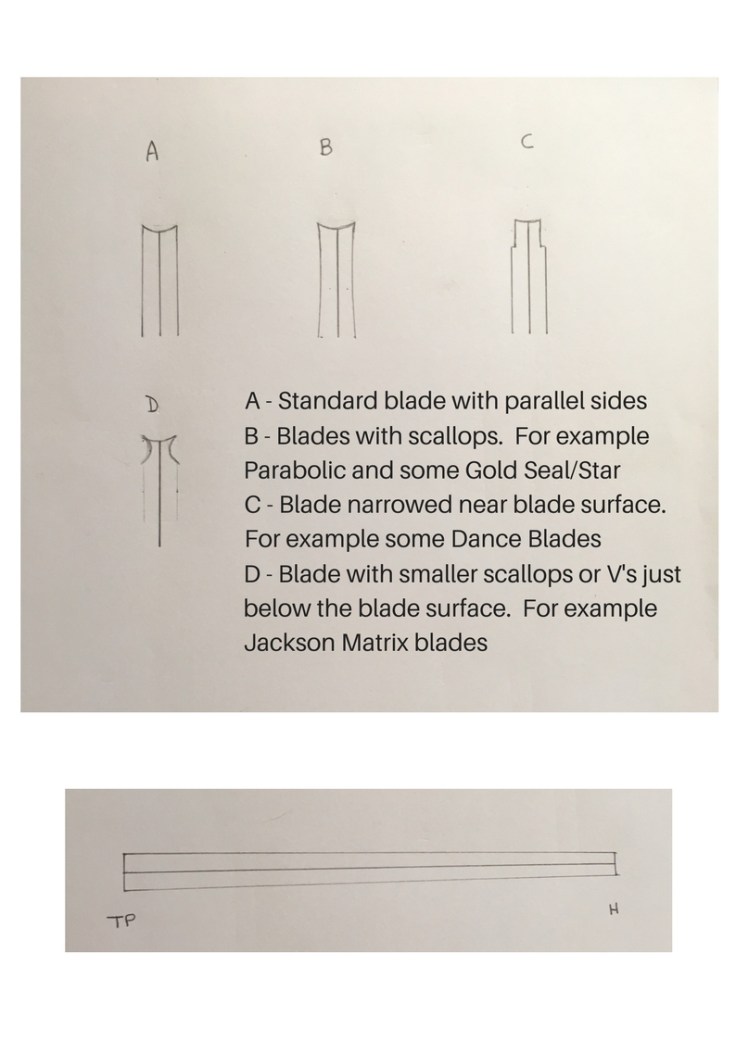

                                              Top photo is cross sections of different blade shapes.                                                          Bottom photo is a top view of some blades (note that the toe pick end is thicker than the heel)
IMG_5879 (002)

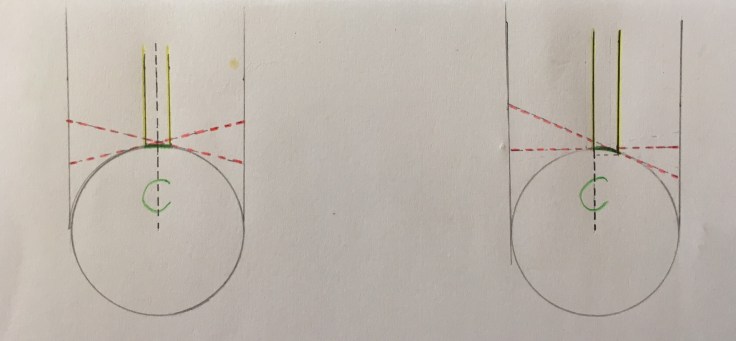

Diagram showing the difference in bite angle if the blade is not centered on the grinding wheel creating uneven edges.
IMG_5880 (002)

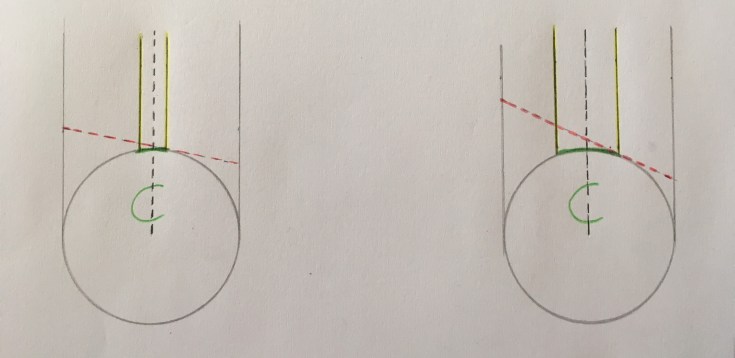

Diagram showing the difference in bite angle for thicker blades with the same Radius of Hollow
IMG_5881 (002)

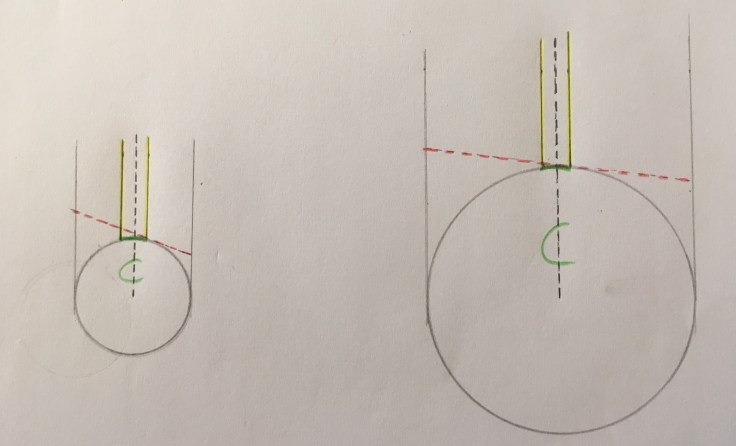

Diagram showing the difference in bite angle for the same blade thickness on a greater Radius of Hollow.
