Edges that are not level (front and rear of blades measured from each side of blade)
IMG_5251
Studies have shown that the tolerance skate techs need to work to is a maximum of a thickness of a piece of paper between the two edges.

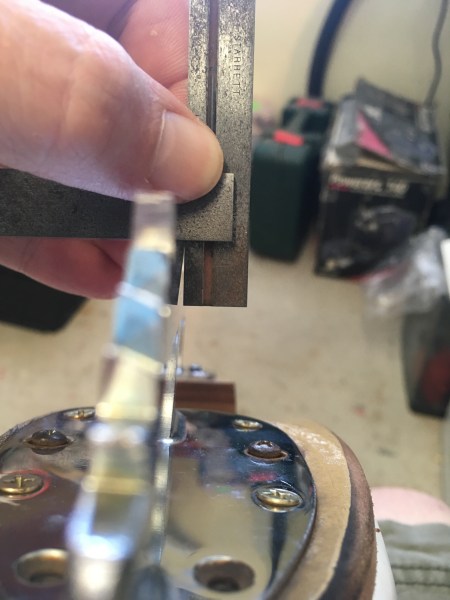

IMG_5647
It is essential to check both the front and back of the blade to ensure even edges.  (The outside edge at the front of the blade could be out as shown above and rear of the blade could be out by the same amount on the inside edge.  Or the edges could be even at one end of the blade and out at the other).

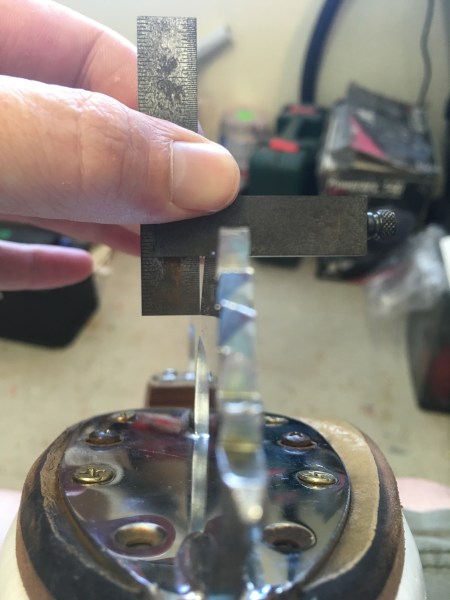

IMG_5648

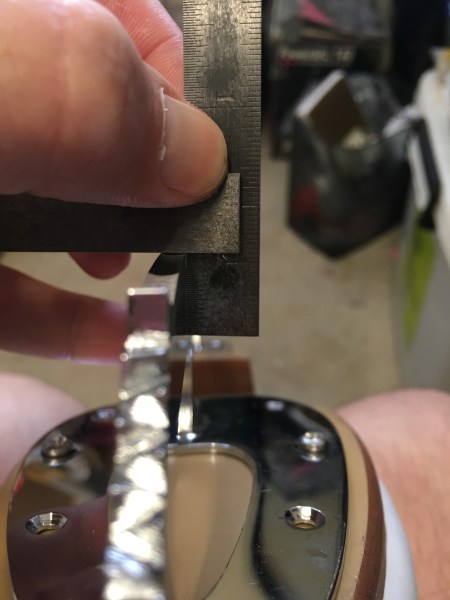

IMG_5698
Photo showing even edges after I have sharpened the blade

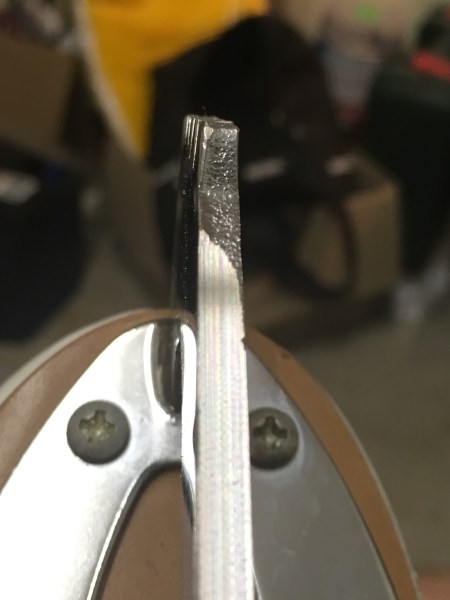

IMG_5769
The edges are even on this blade so you can not look at where the grind is positioned on the blade and assume they are either level or not

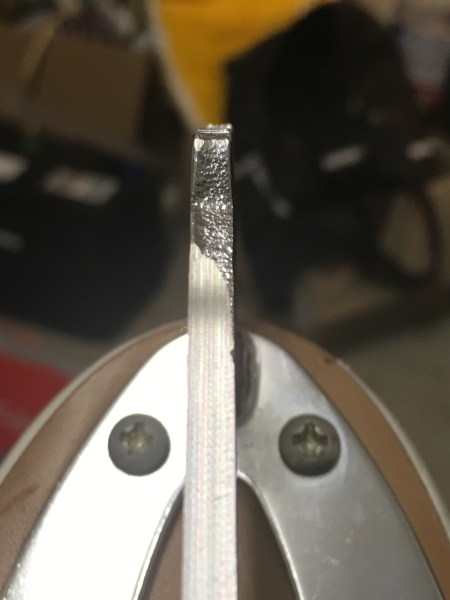

IMG_5768
As above- level edges even though it doesn’t look like the grind is in the middle of the blade from this angle. The sides of the blades are parallel, but the grinding edge wasn’t cast level, so it gives this view.
